1. Solid and environment-friendly full-cover metal machine frame prevents UV light from leaking out.

2. Micro computer control (manual or automatical) 99 sets of data can be selected. Multidialectal LED displaying.

3. Three drawers for stores and standby plates.

4. UV light integrator assures comprehensive scanning.

5. Multiple exhausting system and multistep exposure system selects multi-exposure according to different materials and eliminates tape track.

6. Pre-vacuum-exhausting, enhanced vacuum exhausting, exposure and enhanced exposure.

7. Anti-electrostatic rubber pads and air-intake all around assures comprehensive exhausting with high efficiency and speed.

8. Yellow safe work light.

9. Long-time-lasting constant metal-halide lamp, 5KW.(25%,50%,100% light intensity for option)

10. Strong cooling air fan assures the normal operation life of glass and lamp.

11. High-quality lamp initiates exposure with parallel light spectrum and assures the quality of printing down by Superluck full cover printing down frame.

Model	SL-700F	SL-950F	SL-1250F
Exposing Area(mm)	650x750	910x1100	1200x1450
Light Source	3KW/5KW light source (instant light source is optional )
Exhausting Process	pre-vacuum-exhausting, enhanced vacuum exhausting
Exposture process	exposure and enhanced exposure
Vacuum system	high speed dual-loop vacuum-exhausting system
Vacuum degree	760mmHg(30inHg)
Light wave Range(mm)	365—420
	85％～95％
Power supply	380V  3φ  50/60Hz   20A
Power	4KW
Net Weight(kg)	325	380	605
Gross weight (kg)	370	440	680

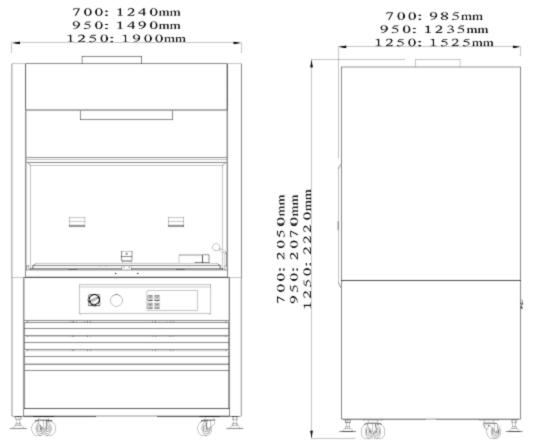

Mechanical Size(mm)	1240x985x2050	1490x1235x2070	1900x1525x2220
Package size（mm）	1470X1150X1600	1720*1400*1600	2100*1700*1700
