1. Accurate and reliable Mitsubishi PLC control.

2. Solid and durable PVC molding without corrosion.

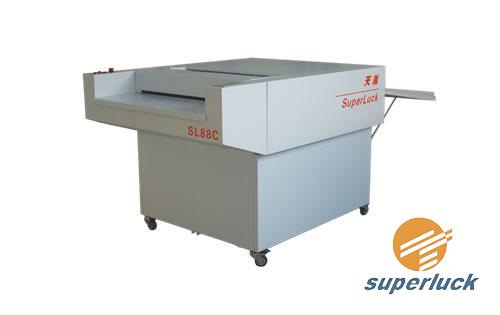

3. Long-operation-life roller bearing stand assures durability of SuperLuck Conventional Plate Processor.

4. Smooth and easy-caring main worm gear driving.

5. Energy and water saving. Internal recycle and tap water washing are optional, environment friendly.

6. Wide diving developing structure assures sufficient developing.

7. Developing filter system keeps the plate clean and eliminates dirts effectively.

8. Special-designed brush cleans the plate thoroughly.

9. Automatic gumming and glue recycling.

10. Aging-resistance gum roller meets the highest demand of reproduction of screen dots when developing CTP plates.

11. Double washing function, convenient for secondary washing and gumming after retouching.

12. Compatible with automatic plate receiver and clean water filtering system.

13. Compatible with CTcP plate maker.

Model	SL-88C	SL-105C	135C
Material	Positive and negative single-sided PS plate
Capability	400-1400 mm/min
Plate width	880 mm	1050 mm	1350mm
Plate length	Min. Plate width 410mm
Plate thickness	0.15-0.4mm
Tank Content, dev	38L	43L	48L
Tank Content, wash	25L	31L	38L
Developing Temperature	20～40℃±0.5℃adjustable
Drying temperature	18～45℃ adjustable
Developing time	20～40seconds adjustable（from the inlet of plate to the outlet of plate）
Water supply	tap water, Min. water pressure 1bar/15psi
Water consumption	tap water    10L/min
	Circulating water 200mm/m2
Diameter of gum roller	φ60mm
Diameter of wash brush (mm)	Φ50mm
Rotary speed of wash brush	90rpm
Developing Replenishment	0～250ml/m2
Developing Warm-up Time	from 18 to 40 degree C within 30min
Horizonal  Adjustment	adjustable
Power Supply	220V、50/60Hz 、1φ、30A
Power	4KW/5KW
Voltage Fluctuating Range	±10％
Gross Weight	370	480	570
Net Weight	420	530	620

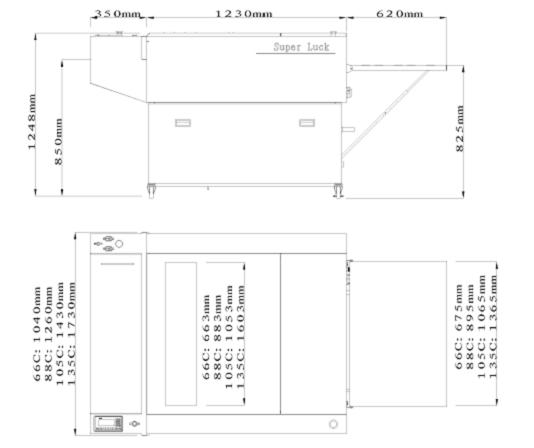

Mechanic size（mm）	1580X1260X1010	1580X1430X1010	1580X1430X1010
Packing Size(mm)	1790X1350X1200	1790X1520X1200	1790X1820X1200
