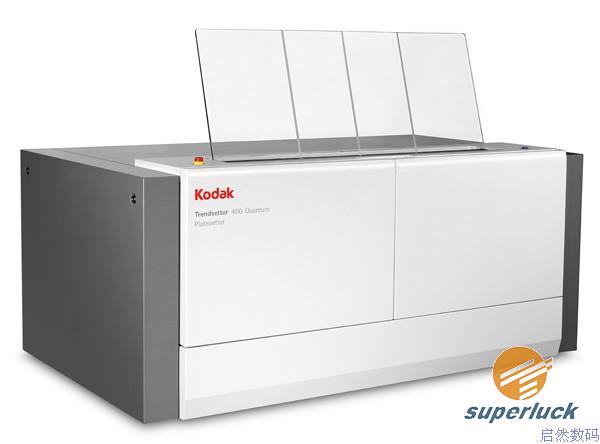

Kodak Trendsetter 400CTP platesetters can not only improve the quality and maximum capacity, will also reduce the impact on the environment to the greatest extent. All quantum direct plate maker for kodak proud square spot (SquareSpot) imaging technology, from the plate photosensitive emulsion layer, version machine, laser energy changing factors. This kind of stability, not only can let the user to reduce the plate
rework, reduce the adjustment time for changes, to further reduce the cost, also can let users to achieve high resolution printing, leading in the competition. Kodak wins if quantum direct plate maker with kodak visual flocity 10 microns (Staccato) and network technology is combined with kodak CTP plate, will create a photo print, become a secret weapon to attract customers. Kodak wins 400 CTP machine can be easily upgraded to 800 wins plate maker directly.

Technical Data

Technology	830 nm thermal imaging platesetter, semi-automatic, external drum
Load/unload systems	Standard Auto Unload Autoloader
Throughput at 2400 dpi1,2 for plate size 724 x 838 mm (28.5 x 33 in)	Standard and Auto Unload: S speed = 20 pph F speed = 30 pph V speed = 43 pph		Autoloader: S speed = 22 pph F speed = 33 pph V speed = 50 pph
Workflow connectivity	KODAK PRINERGY EVO Workflow, KODAK PRINERGY Workflow, and connection to third-party workflow systems
Resolution	2400/1200 dpi
Screening	KODAK TRENDSETTER 400 Platesetter: 250 lpi max line screen Optional 25-micron KODAK STACCATO Screening KODAK TRENDSETTER 400 QUANTUM Platesetter: 450 lpi max line screen Optional: 20- or 10-micron KODAK STACCATO Screening
Maximum plate size: around drum x along drum3	838 x 990 mm (33 x 39 in)
Minimum plate size: around drum x along drum3	Standard: 267 x 215 mm (10.5 x 8.5 in)	Auto Unload: 383 x 270 mm (15.1 x 10.6 in) Manual unload: 267 x 215 mm (10.5 x 8.5 in)	Autoloader: 383 x 270 mm (15.1 x 10.6 in) Manual load and unload: 305 x 215 mm (12 x 8.5 in)

¹ Imaging speed and throughput is dependent on media sensitivity. All values are for media sensitivity of 120 mJ/cm².
² Tested with Kodak Workflow Solutions. For additional information about the test conditions, please consult your Kodak
   representative.
³ Standard plate gauge is 0.14 to 0.3 mm (0.0055 to 0.012 in). Option available for plate gauge of 0.14 to 0.4 mm
   (0.0055 to 0.016 in). For plate gauges 0.14 to 0.2 mm (0.0055 to 0.08 in) there may be some differences in minimum
   and maximum plate sizes. For more information, please consult your Kodak representative.
