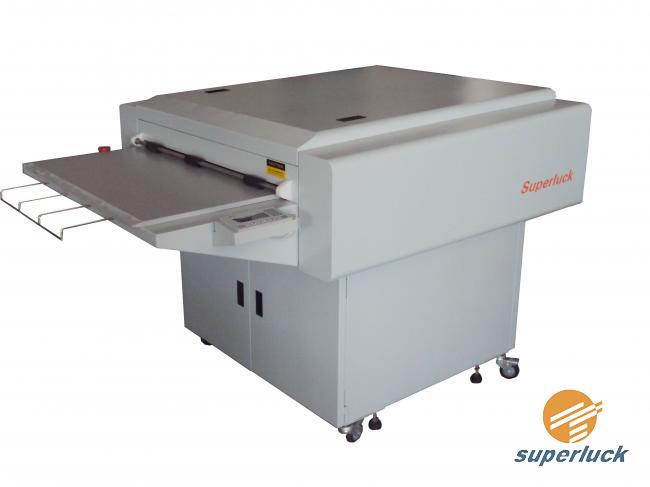

1. Superluck Plate Recovery unit is for cleaning the ink on the offset printing plate and keeping for future use.
2. Superluck Plate Recovery unit operates four process: Cleaning the ink on the plate; Wash out the remaining dirty and cleanser; Gumming the plate; Drying the plate.
3. Steam line appearance with solid and anti-corrosion PVC tank.
4. Micro computer control system and automatic operation.
5. Easy installation and un-installation of rollers for convenient maintenance.
6. Automatic standby, cost-saving and environmental-friendly.
7. Automatic washing, gumming, drying as a whole process of Superluck plate recovery unit.
8. Quick tabular brush washing to ensure thorough cleaning of the ink.
Model
SL-66L
SL-88L
SL-105L
SL-130L
Plate size
Max. width660mm
Min. width100mm
Min. Length300mm
Max. width880mm
Min. width100mm
Min. Length300mm
Max width1050mm
Min. width100mm
Min. Length300mm
Max width1300m
Min width 100mm
Min. Length300mm
plate thickness
0.25～0.4mm
Capability
400～1200mm/min adjustable
Tank content, dev
26
35
41
50
Tank content, wash
14
18
23
28
Developing replenishment
Manual/ automatic
developing temperature
20～45℃（0.1℃ interval）
Developing time
20～40seconds adjustable（from the inlet of plate to the outlet of plate）2）
